i100EC
Core i5 / i3 10 th, 11 th 12 th & 13 th Gen Processor Embedded ProcessorConsumes less power 80 PIN, Supports Multiple OS Indian Environment Friendly
Key Features
- Processor Series: Intel Core i3 / i5: These are mid - range processors suitable for a variety of computing tasksGenerations: 10 th, 11 th, Genration processors, with each generation offering incremental improvements in performance, power efficiency, and integrated graphics.
- Embedded Processor:Embedded Versions: These processors are designed to be embedded in specific devices, often with optimizationsfor power efficiency and size Power Consumption: Embedded processors generally consume less power, making them suitable for applications where energy efficiency is crucial
- Physical Features: 80 PIN Configuration: This likely refers to the physical interface or socket type used by the processor, which could be designed for specific embedded applications.
- Operating System Support: Multiple OS Support: These processors are likely to support a wide range of operating systems, making them versatile for different applications.
- Environmental Considerations: Indian Environment Friendly: This could imply that the processor and its supporting hardware are designed to function efficiently in diverse Indian environmental conditions, such as high temperatures, humidity, or other challenging conditions.It might also suggest compliance with environmental standards.
Specifications
| Processor | Core i3 / i5 10th & 11th generation |
| Graphics | Intel UHD Graphics |
| Memory | 4GB , 8GB & 16GB DDR4(2 x SO - DIMM DDR4 - 2666) |
| Storage | 28GB, 256GB, 512GB , 1TB (1 x M .2 2280 for NVMe PCIE 4 x SSD, Support Optan 1 x M .2 2242 for SATA SSD) |
| Interface | 1 x HDMI2.0, resolution 4096 x 2160 @ 60Hz 1 x 80 pin JAE Con.(HDMI2 .0), resolution 4096 x 2160 @ 60 H1 x DP1 .2(Integrated in Type C), resolution 4096 x 2160 @ 60 Hz |

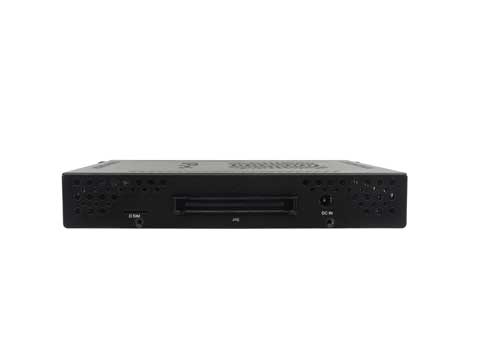

| Rear Panel | 1 x JAE 80pin: 1 HDMI 2.0, 2 USB2.0,1 USB3.0, TTL, Audio, LAN（Option1 x 2.5/5.5 DC IN JACK 1 x Micro SIM Card |

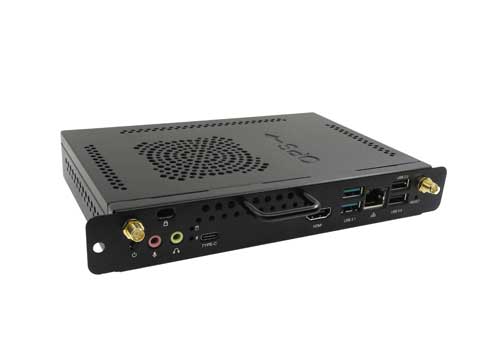

| Front Panel | 1 x HDMI2. 2 x USB3 .1 Gen2, 1 x USB3 .1 Type - C, 1 x USB 2.0, 1 x USB 3.0 1 x RS232, DB9(Option) 1 x RJ45 1 x MIC IN, 1 x Line out 2 x Wi - Fi / BT ANT 1 x Power button, 1 x Reset button |
| Watchdog | Supports |
| TPM | Support, TPM2.0 |
| Connectivity | 1 x RJ45 Dual Band Wifi + BT modul |
| Optional | x M.2 3042 for 4G module 1 xCOM |
| Operating System | Windows Embedded Windows 10 Pro Windows 11 Pro Linux Ubuntu / Boss Linux |
| Operating Humidity | 10%~90% non-condensing 5 % ~95 % non - condensing |
| Certification | BIS, FCC, ROHS,CE, BEE, MIL810-STD H |
